Flagpole Trucks & Accessories
|
ST-1 SERIES |
Standard
color is silver. Cast aluminum construction with 1" outside
diameter cast nylon pulley on 3/16" stainless steel axles. deigned to
slip over the top of the flagpole and secured by three 1/4" -20NC stainless
steel set screws . The top of the truck is designed to accept an ornament
with a spindle threading 1/2"-13NC as standard. The ornament is
secured to the truck with a size 10-32 stainless steel pan head
screw. The recommended maximum halyard diameter is 1/4".
| MODEL | FITS-POLE DIAMETER | 1-5 | 6+ |
| ST-1-38 | 1 3/8" | $17.00 | $15.00 |
| ST-1-12 | 1 1/2" | 17.00 | 15.00 |
| ST-1-34 | 1 3/4" | 17.00 | 15.00 |
| ST-1-16 | 1 15/16" | 17.00 | 15.00 |
| ST-1-20 | 2" | 17.00 | 15.00 |
|
ST-32 SERIES |
Standard
color is silver. Cast aluminum construction with 1 7/16" outside
diameter cast nylon pulley on 1/4" stainless steel axles. deigned to
slip over the top of the flagpole and secured by three 5/16" -18NC
stainless steel set screws . The top of the truck is designed to accept an
ornament with a spindle threading 1/2"-13NC as standard. The ornament
is secured to the truck with 1/4"-20NC stainless steel set
screw. The recommended maximum halyard diameter is 5/16".
| MODEL | FITS-POLE DIAMETER | 1-5 | 6+ |
| ST-3 | 1 7/8" | $33.00 | $30.00 |
| ST-2 | 2 3/8" | 31.00 | 28.00 |
|
OT SERIES |
Standard
color is silver. Cast aluminum construction with cast nylon pulley (1
7/16" outside diameter on OTH, OT1 and OT25; 2" outside diameter on
OT2, OT3 and OT35) on a 1/4" stainless steel axle. Designed to
slip over the top of the flagpole and be secured with stainless steel set screws
( one 1/4"-20NC on the OTH; three 5/16-18NC on the OT1, OT2, OT25, OT3 and
OT35). The top of the truck is designed to accept an ornament with spindle
threading of 1/2"-13NC as standard. The ornament is secured to the
truck with a 10-32 stainless steel pan head screw. The maximum recommended
halyard diameter is 5/16".
| MODEL | FITS-POLE DIAMETER | 1-5 | 6+ |
| OTH | 2" | $17.00 | $15.00 |
| OT1 | 2 3/8" | 23.00 | 21.00 |
| OT24 | 2 1/2" | 27.00 | 24.00 |
| OT2 | 2 3/4" | 27.00 | 24.00 |
| OT3 | 3" | 27.00 | 24.00 |
| OT35 | 3 1/2" | 32.00 | 29.00 |
|
RTC-1 SERIES |
Standard color is silver. Cast aluminum construction with a 2" outside
diameter cast nylon pulley on a 1/4" stainless steel axles. The
bottom portion of the spindle is designed to fit over the top of the flagpole
and is secured with three stainless steel set screws (1/4"-20NC on the
RTC-1-2 & 5/16"-18NC on the RTC- 1-238). The top of the spindle
is designed to accept an ornament with threading of 1/2"-13NC. The
ornament is secured to the truck with a 1/4"-20NC stainless steel set
screw. For ease of rotation, product lift and strength, these trucks
utilize self-lubricating ball bearing assemblies. Recommended maximum rope
diameter is 5/16".
| MODEL | FITS-POLE DIAMETER | 1-5 | 6+ |
| RTC-2 | 2" | $58.00 | $52.00 |
| RTC-238 | 2 3/8" | 58.00 | 52.00 |
|

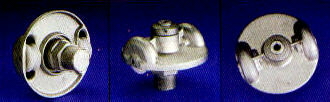

RTC-2 SERIES |
Standard color is silver. Cast aluminum construction with a 2" outside diameter cast nylon
pulley on a 1/4" stainless steel axles. The bottom portion of the spindle is designed to fit over
the top of the flagpole and is secured with three stainless steel set screws (1/4"-20NC on the RTC-2-2
& 5/16"-18NC on the RTC- 2-238). The top of the spindle is designed to accept an ornament with
threading of 1/2"-13NC but can be supplied with other sizes of threading. The ornament is secured
to the truck with a 1/4"-20NC stainless steel set screw. For ease of rotation, product lift and
strength, these trucks utilize self-lubricating ball bearing assemblies. Recommended maximum rope
diameter is 5/16".
| MODEL | FITS-POLE DIAMETER | 1-5 | 6+ |
| RTC-2-2 | 2" | $56.00 | $51.00 |
| RTC-238 | 2 3/8" | 58.00 | 52.00 |
|
RTC-1 SERIES |
Standard color is silver.
Cast aluminum construction with a 2" outside diameter cast nylon pulley on a 1/4" stainless steel
axle. this truck is designed to be used on flagpoles that have up to a 3 1/2" outside top
diameter with female fitting installed. The bottom of the spindle has a 1 3/4" NPT threading and is
screwed into the top of the flagpole while the top of the spindle is designed to accept an ornament with
threading of 1/2"-13NC as standard but can be supplied with other sizes of threading. The ornament
is secured to the top of the truck with a 1/4"-20NC stainless steel set screw. For ease of
rotation, product life and strength, these trucks utilize stainless steel self-lubricating ball bearing
assemblies. Recommended maximum rope diameter is 5/16".
| MODEL | 1-5 | 6+ |
| RTC-1-125 | $44.00 | $40.00 |
|
RTC-2 SERIES |
Standard color
is silver. Cast aluminum construction with a 2" outside diameter cast nylon pulley on a
1/4" stainless steel axle. this truck is designed to be used on flagpoles that have up to a
4" outside top diameter with female fitting installed. The bottom of the spindle has a 1
1/4" NPT threading and is screwed into the top of the flagpole while the top of the spindle is designed
to accept an ornament with threading of 1/2"-13NC as standard but can be supplied with other sizes of
threading. The ornament is secured to the top of the truck with a 1/4"-20NC stainless steel set
screw. For ease of rotation, product life and strength, these trucks utilize stainless steel
self-lubricating ball bearing assemblies. Recommended maximum rope diameter is 5/16".
| MODEL | 1-5 | 6+ |
| RTC-2-125 | $48.00 | $43.00 |
|
HEAVY-DUTY SERIES |
Standard color is
silver. Cast aluminum construction with a 3 7/8" outside diameter cast nylon pulley
on a 1/2" stainless steel axle. this truck is designed to be used on flagpoles that have up
to a 5 1/2" outside top diameter with female fitting installed. The bottom of the spindle has
a 1 1/4" NPT threading and is screwed into the top of the flagpole while the top of the spindle is
designed to accept an ornament with threading of 1/2"-13NC as standard but can be supplied with other
sizes of threading. The ornament is secured to the top of the truck with a 1/4"-20NC stainless
steel set screw. For ease of rotation, product life and strength, these trucks utilize stainless steel
self-lubricating ball bearing assemblies. Recommended maximum rope diameter is 5/16".
| MODEL | 1-5 | 6+ |
| HDT | $110.00 | $100.00 |
| Flagpole Caps |
Cast aluminum construction designed to slip over the top of the flagpole and be secured with three 1/4'-20NC stainless steel set screws. The top of the cap is designed to accept an ornament with a spindle threading of 1/2'-13NC as standard but can be supplied with other sizes of threading or no threading.
|
Silver | |||
| MODEL | Fits Pole Diameter |
1-5 |
6+ |
| FC-20 | 2" | $12.00 | 10.00 |
| FC-212 | 2 1/2" | 14.00 | 12.00 |

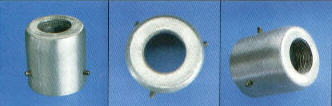

| Flagpole Top Adaptors |
These adaptors are used in mounting a truck that has a spindle threading of 1 1/4" NPT and the pole does not have a threaded to plug installed. the adaptor is tapped 1 1/4" NPT and is designed to slip over the top of the pole and secured by three 1/4"-20NC stainless steel set screws.
|
Silver | |||
| MODEL | Fits Pole Diameter |
1-5 |
6+ |
| PTA-238 | 2 3/8" | $36.00 | 32.00 |
| PTA-212 | 2 1/2" | 36.00 | 32.00 |
| PTA-3 | 3" | 50.00 | 45.00 |
| PTA-312 | 3 1/2" | 50.00 | 45.00 |
| PTA-4 | 4" | 60.00 | 54.00 |
| PTA-412 | 4 1/2" | 60.00 | 54.00 |
| PTA-5 | 5" | 60.00 | 54.00 |
| PTA-512 | 5 1/2" | 80.00 | 72.00 |
| PTA-6 | 6" | 80.00 | 72.00 |
